Product Description
Hydraulic round pile breaker
| Technical specification | 13 modules combination KP315 | 18 modules combination KP380 |
| Pile diameter | 300~1050 mm | 600~1800 mm |
| Max. rod pressure | 280 kN | 600 kN |
| Max. cylinder stroke | 135 mm | 150 mm |
| Max. crowd pressure | 34.3 MPa | 34.3 MPa |
| Max. single cylinder flow | 20 L/min | 30 L/min |
| Quantity/8h | 60/8 h | 48/8 h |
| Max. single cutting height | ≤300 mm | ≤300 mm |
| Excavator capacity | ≥20 | ≥35 |
| Single module weight | 100 kg | 230 kg |
| Single module size | 520×444×316 mm | 696×566×350 mm |
| Operating size | Φ2098×4000 mm | Φ3316×4840 mm |
| Overall weight | 1.7 t | 4.5 t |
Hydraulic square pile breaker
| Type | KP400S | KP450S | KP500S |
| Pile length | 250~400 mm | 350~450 mm | 400~500 mm |
| Max. rod pressure | 280 kN | 280 kN | 280 kN |
| Max. cylinder | 135 mm | 135 mm | 135 mm |
| Max. crowd pressure | 34.3 MPa | 34.3 MPa | 34.3 MPa |
| Max. single cylinder flow | 20 L/min | 20 L/min | 20 L/min |
| Quantity/8h | 160 | 180 | 200 |
| Max. single cutting height | ≤300 | ≤300 | ≤300 |
| Excavating capacity | ≥7 | ≥8 | ≥10 |
detials

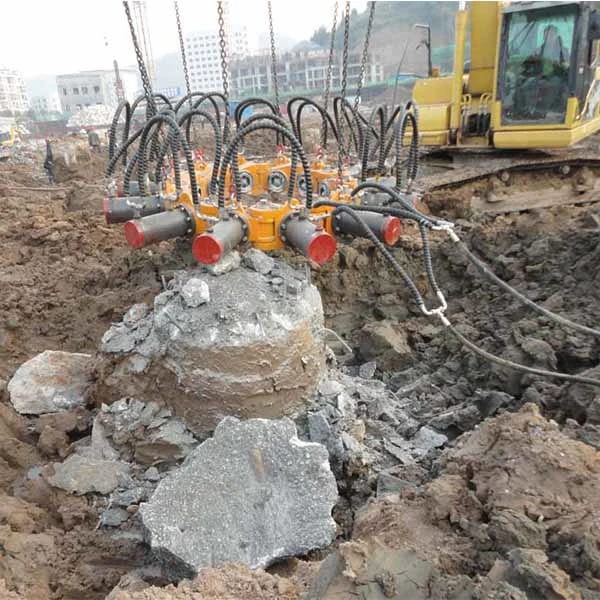

construction photos
Why Choose Us?
1. We are the first factory to design & manufacture pile breaker in China with over 5 years.
2. We have the Patent for Invention of Hydrauilc Pile Breaker in China.
3. Our pile breakers have been sold to more than 20 countries, with good feedback.
4. Using best material, our pile breaker is the best quality.
FAQ
The warranty period for new machine is half a year or 1000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
